Staple Set Block Brush
Staple set block brushes typically feature a unique configuration of filaments or bristles to meet particular requirements. These brushes can be used to cover large areas, opposed to a line of space covered by a metal channel strip brush.
Composition of a tufted, staple-set brush
The customization opportunities on a staple-set brush are countless when considering hole configuration, fill type, fill density, trim length and trim shape.
Block Material
Wood or synthetic
Hole Pattern
Single-row or multiple-row, staggered or straight, a programmed hole pattern is drilled into the block. Hole size and spacing can be customized.
Fill Material
Each hole is filled with a folded tuft of filament. A variety of fill material is able to be used, from natural to synthetic.
Staple
Each tuft is secured with a wire staple, which can be nickel silver, steel, stainless steel, or brass.
Trim
Can be customized to fit your application. Choose from straight, beveled, convex or concave.
Customize your block
Customize both the material and dimensions of your block.
Bristle: Horsehair
Block Material: Wood
Custom block

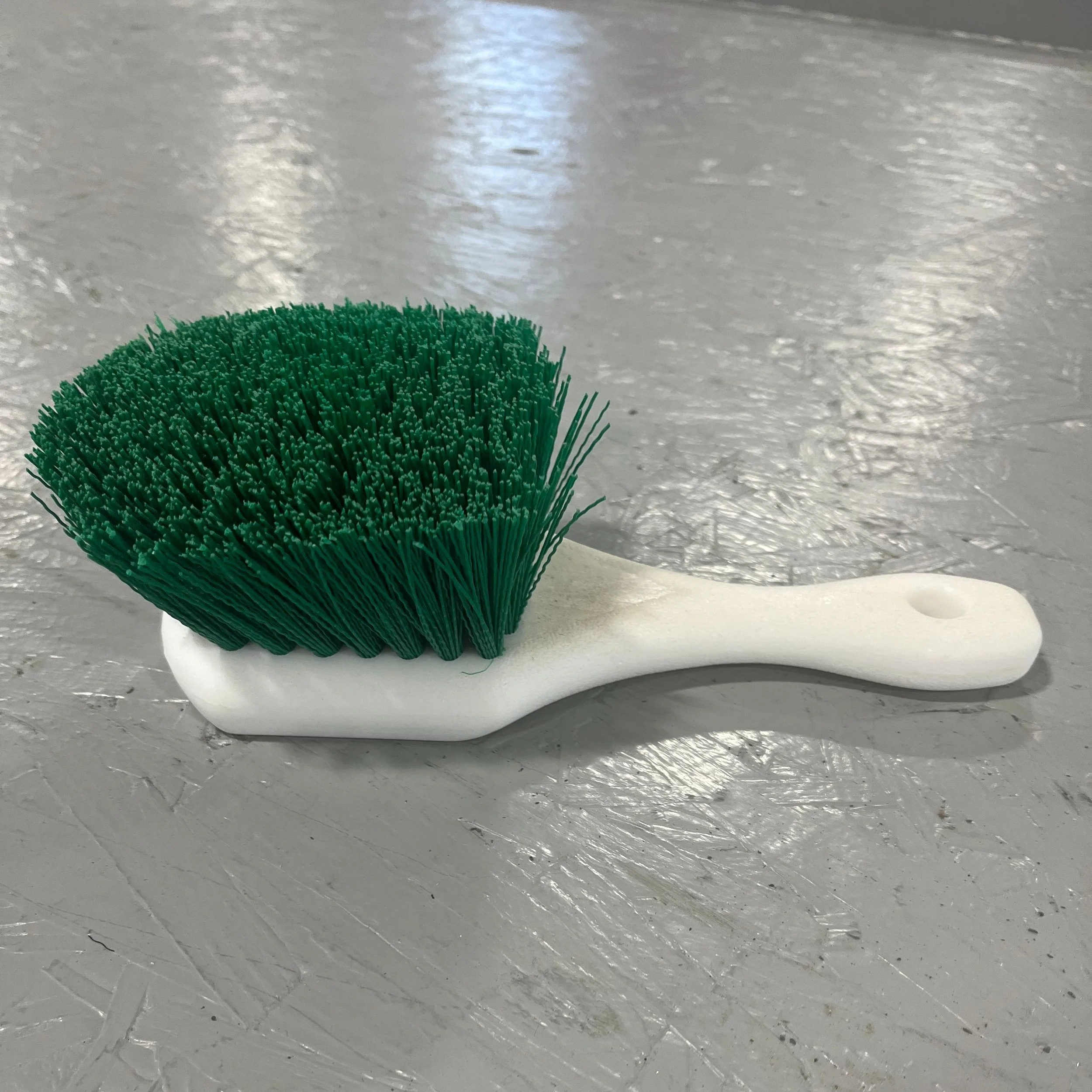

Bristle: Polypropylene
Block Material: Plastic
Molded block

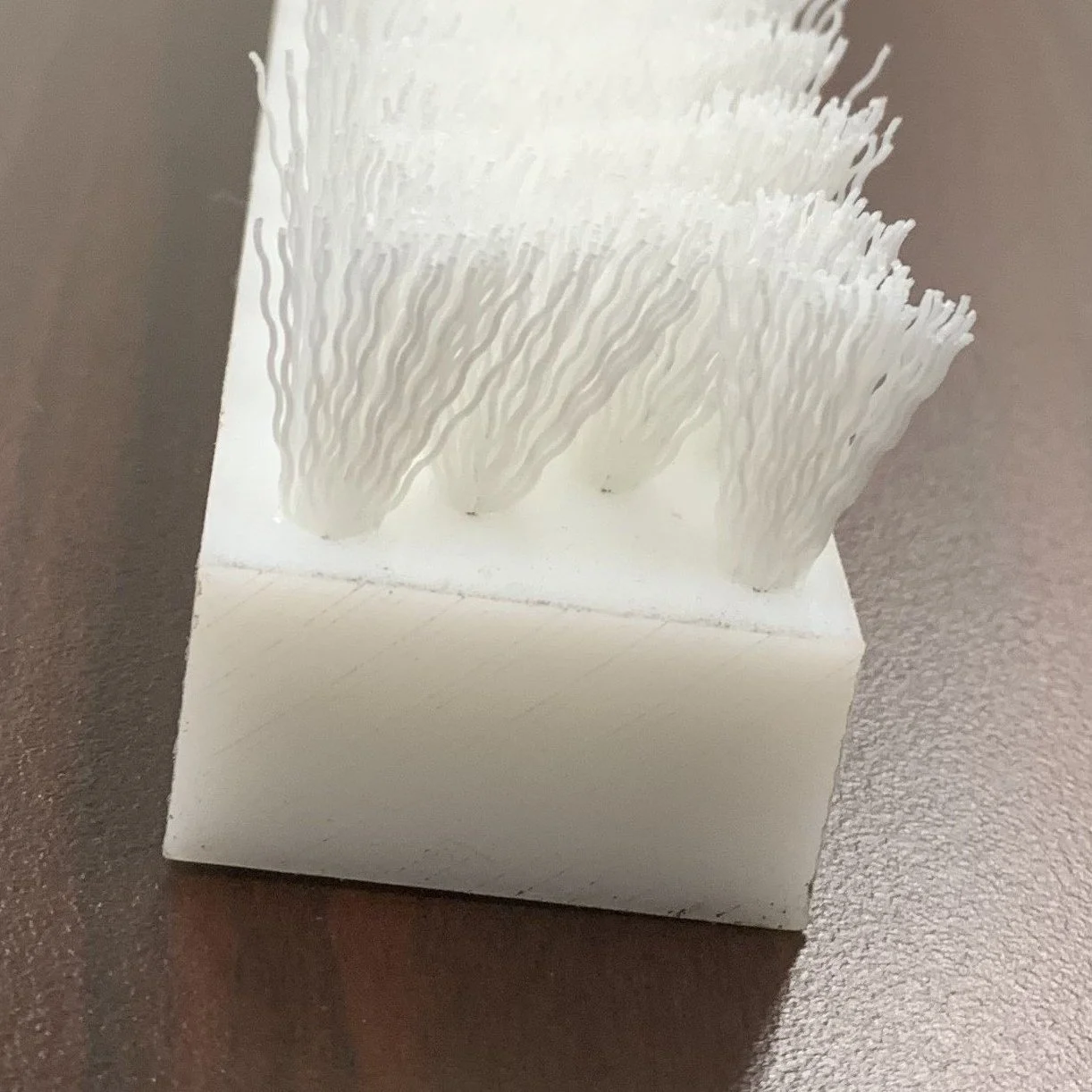

Bristle: Nylon
Block Material: HDPE
Custom-cut block
Customize your hole pattern
From a single tuft to single or multi-row hole patterns, we can customize your brush.
Staggered hole pattern
Straight hole pattern
Customize your hole spacing
A. Distance of row to edge (length)
B. Distance of row to edge (width)
C. Hole spacing (length)
D. Hole spacing (width)
Customize your fill material
Pairing the right filament to your application plays a crucial role in the performance of your brush.
Crimped
Level
These bristles have a wave and create a bushier brush.
Straight bristles create a more compact surface.
Synthetic
Nylon
Good bend recovery, abrasion resistance, flex fatigue resistance, and chemical resistance.
Grade 6.0, 6.6, 6.12
Polypropylene
Versatile filament with excellent wet stiffness. Good bend recovery, but will take a set more easily than other material.
Polystyrene
Used widely for floor brushes, counter sweeps, and light duty applications.
Polyester
Ideal for wet applications since its water absorption is very low. Also excellent bend recovery and solvent resistance.
Natural
Horse Hair
Excellent durability. The soft to slightly stiff texture ensures gentle cleaning without scratches on polished surfaces. Produces very little static electricity.
Tampico
From the Agave plant grown in Mexico, with a natural cream color. Excellent for tasks that involve retaining liquid, scrubbing, and finishing surfaces.
Trim options
We offer a variety of trim options to meet your custom brush needs.
Straight
Beveled
Reduces brush resistance.
Industry standard and most common
Concave
Convex
Uniform brush contact for brushing irregular surfaces.
Uniform brush contact for brushing irregular surfaces.
Applications for staple-set block brushes
Staple-set block or lag brushes provide unique solutions to a range of industrial challenges, including, but not limited to, the following:
Cleaning
Livestock brushes, push brooms, scrub brushes
Material Handling
Bed brushes, conveying, guiding, and positioning.
Custom
Hand brushes, food processing, OEM, manufacturing processes
